INSTRUCTION MANUAL

Smart Pour Warm Water Dispenser

MODEL NO.: LS-BE508
110-130V,50/60Hz,1000W

Please read fully to ensure your Baby formula water dispenser works properly every time.

IMPORTANT SAFEGUARDS
TECHNICAL DATA
PRODUCT DESCRIPTION
PANEL DESCRIPTION
HOW TO USE
CLEANING AND MAINTENANCE


IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

  • Read all instructions before use.

  • Do not touch hot surfaces. Use handles or knobs.

  • Heating food separate by water, pour out the water after work.

  • Keep the baby away from the unit.

  • Pull off the plug after use.

  • Don’t put it in water or pour water on it to wash. Clean it with soft wet mop.

  • Be care of the deterioration time of the milk or food.

  • Shake the bottle and check the milk bottle or glass food contents before you feed your baby with it.

  • To protect against electrical shock,do not immerse cord,plug or body in water or other liquid.

  • Unplug from outlet when not in use and before cleaning. But do not use abrasive powder or metal brush.

  • Do not let supply cord hang over edge of tables or counters,or touch hot surfaces.

  • Do not place the appliance on or near heat sources such as a gas or electric burner,or in a heated oven.

  • This appliance is intended to be used in household and similar applications as:

    • staff kitchen areas in shops,offices and other working environments

    • farm houses

    • by clients in hotels,motels and other residential type environments

    • bed and breakfast type environments

  • Must not immersed in water for cleaning.

  • This appliance is not intended for use by person (including children)with reduced physical,sensory or mental capabilities,or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Children should be supervised to ensure that they do not play with the appliance.

  • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

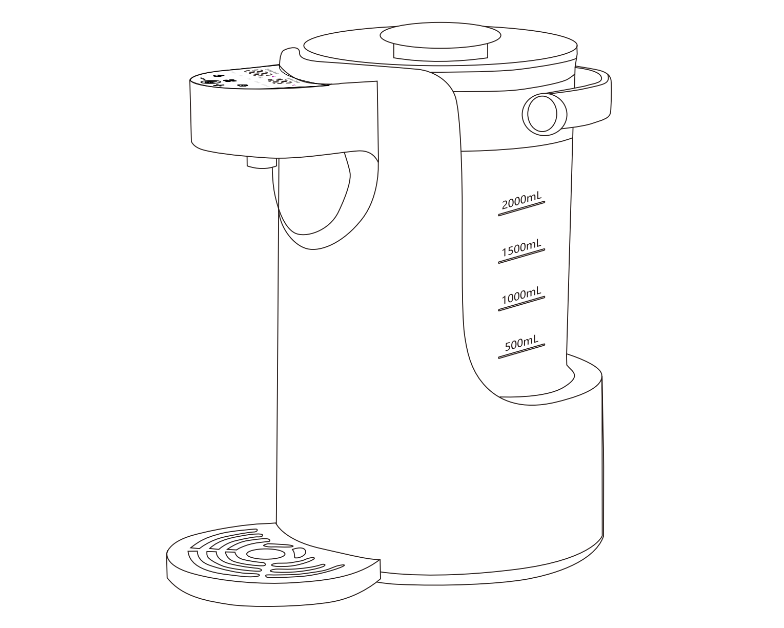

PRODUCT DESCRIPTION:

PANEL DESCRIPTION:

HOW TO USE:

Fill with water for use

Place the unit on a stable surface to ensure it will not tip over or fall into water

  • Open the lid, pour tap water or drinking water, and be careful not to exceed the maximum water level. After installation, please close the lid

Note: when using it for the first time, please boil the water and pour it away before using it normally

Function operation

  1. Formula : In standby mode, lightly touch the ON/OFF button（NO.4）, then touch the function button(NO.3) one time ,wait until BBB sound to enter the heat preservation state, the default heat preservation is 105°F, and the heat preservation can be adjusted through the +/- buttons 95°F-212°F

  2. Warm : In standby mode, touch the ON/OFF button（NO.4）, then touch the function button(NO.3) twice, wait until BBB sound to enter the heat preservation state, the default heat preservation is 120°F, and the +/- button can adjust the heat preservation to 95°F-212°F

  3. Cereal: In standby mode, touch the ON/OFF button（NO.4）, then touch the function button(NO.3) three times, wait until BBB sound to enter the heat preservation state, the default heat preservation is 160°F, and the +/- button can adjust the heat preservation 95°F-212°F

  4. Tea:  In standby mode, touch the ON/OFF button（NO.4）, then touch the function button(NO.3) four times, wait until BBB sound to enter the keep warm state, the default keep warm is 180°F, and the +/- buttons can adjust the keep warm to 95°F-212°F

  5. BOILED: In standby mode, lightly touch the ON/OFF button（NO.4）, then touch the function button(NO.3) 5 times, wait until the BBB sound to enter the heat preservation mode. The default heat preservation is 212°F, and the heat preservation 95°F-212°Fcan be adjusted through the +/- buttons.

Note:

  • During the working process of the product, if the water pot leaves the base, E1 will be displayed and the power will be automatically cut off. It will be placed back in the base within 10 minutes and the previous working state will be restored.

  • If the temperature setting is lower than 160°F, it will be constant heat preservation state. The temperature setting higher than 160°F, it will be only 24-hours heat preservation state.

  • E1: The pot body cannot be detected

  • E3: If there is a problem when working without water, the power will be automatically cut off, and there will be no functional operation. It will return to normal after natural cooling (water can be added to quickly cool down)

CLEANING AND MAINTENANCE:

Always unplug the unit before cleaning.

  • Do not scratch the surface of the heating plate with metal sharp objects or other cleaning tools, to avoid damaging the heating plate;

  • To prevent water scale, please use pure water as much as possible.

  • If scale accumulates in the glass pot , add approximately 150ML of citric acid to 300mL of water and pour it into the glass pot for cleaning and soaking. After the scale is peeled off, wipe it clean with a soft cloth or sponge.
